Joey Roth Steel Speaker

Portland’s Joey Roth is a favourite designer around here. Whether designing the world’s most beautiful teapot, garden ceramic pots or lifestyle speaker systems with emphasis on the style and excellent sound, Roth can be counted upon to produce sexy goods that are definitely not flavours of the month.

His newest product is the wireless omnidirectional, Steel Speaker.

‘The Steel Speaker is a mass-loaded transmission line that uses quarter-wave harmonics to extend the driver’s bass response. A central divider a splits the enclosure into two halves, creating a folded 24″ transmission line. The rear port sits a few inches from the end of the line and the driver sits at the middle. This positioning eliminates all harmonics other than the first, lowest harmonic, which is tuned to extend the bass response. The hardwood ball diffuses sound from the front of the driver in all directions. It also houses the Bluetooth antenna, since it is the only part of the Steel Speaker that does not block RF.’

Specifications

Design: Mass-loaded transmission line (MLTL)
Amplifier: Bridged mono TPA3118
Inputs: Bluetooth 4.0, RCA
Driver: Fountek FR58EX
Dimensions (L x W x H): 3 x 4 x 15.5 in. (7.62 x 10.16 x 39.37 cm)
Weight: 12 lbs. (5.5 kg)

Now available for pre-order with delivery in early 2016. Full review? Product requested.

Price: Raw $450; Graphite $500

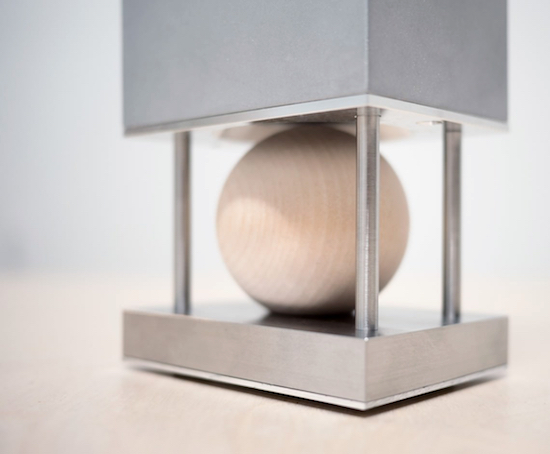

Updated photo 7/6/2016. Detail of the Steel Speaker driver/wood ball /antenna assembly.

Updated photo 7/6/2016. Detail of the Steel Speaker driver/wood ball /antenna assembly.
